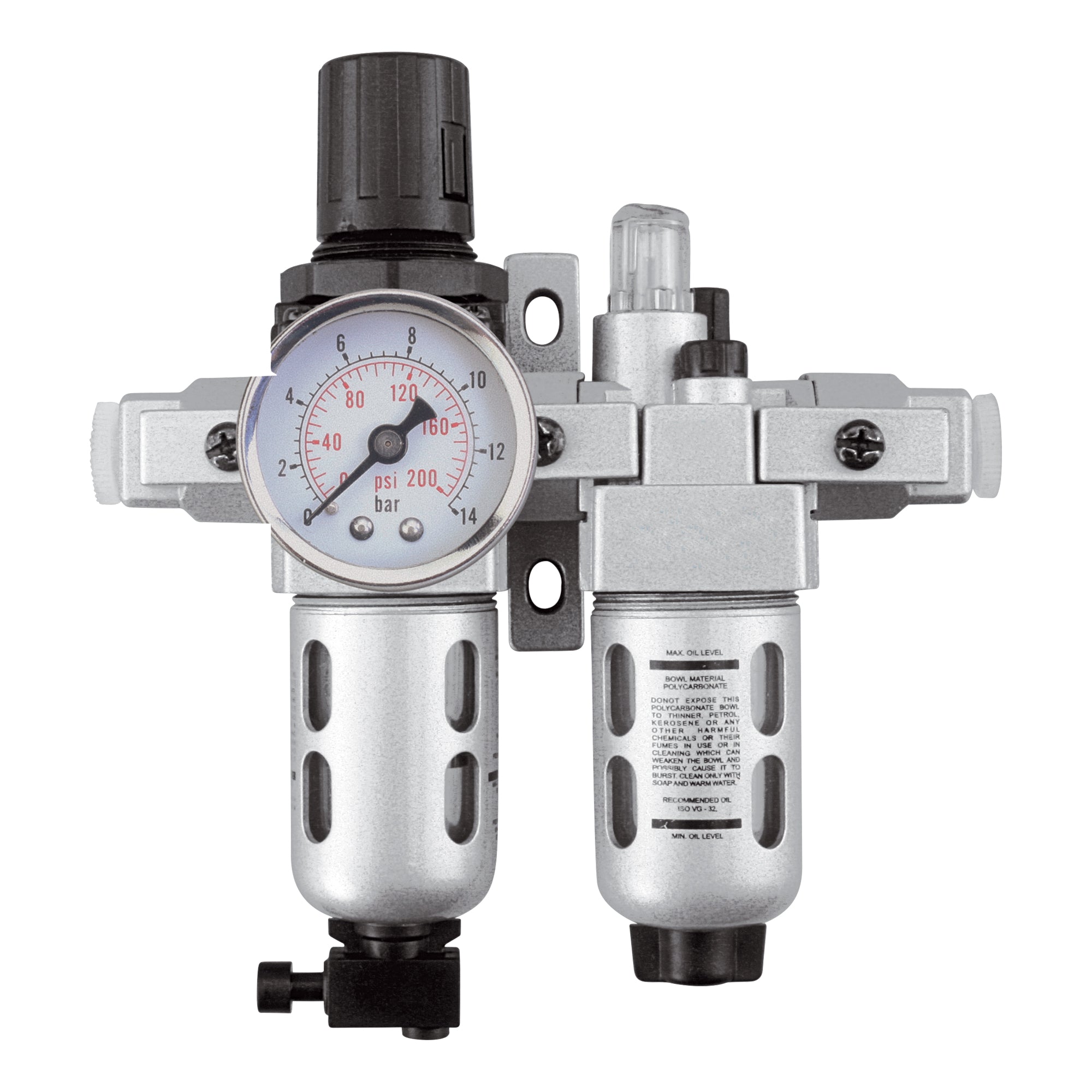

Modular Filter/Regulator & Lubricator (Gauge Included), 3/8" NPT
3/8" NPT
$155.00
Sale price
$155.00
Regular price
$0.00
Skip to product information
Modular Filter/Regulator & Lubricator (Gauge Included), 3/8" NPT
$155.00
Sale price
$155.00
Regular price
$0.00
- Space-saving, two-piece combination is a popular air preparation unit
- Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
- Come complete with a wall mounting bracket
- Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
- Filter used to separate dust, dirt, moisture and other contaminants from compressed air
- Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
- Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
- Fog/Micro Mist type lubricator, up to 50' pipe runs
- Connection Size: 3/8" NPT
- Max. Air Flow: 44 SCFM @ 105 PSI
- Operating Pressure: 7-145 PSI
- Bowl Material: Polycarbonate
- Bowl Capacity: 1.93 fl. oz.
- Filter Bowl Capacity: 1.08 oz.
- Lubricator Bowl Capacity: 1.93 oz.
- Series: FRL200
